Spray Nozzle Mounting Instructions

Sprayer Nozzle type recommendations

Tubing Mounting

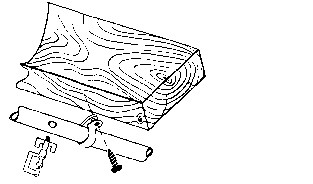

Attach 5/8" O.D. Tubing to the underside of a truss, perlin, etc., using 5/8" loop clamps, G260, and screws, G270, provided.

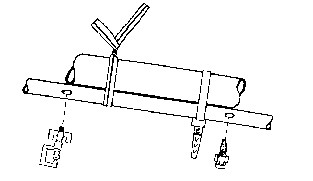

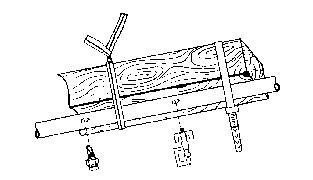

Or whatever works best: loop clams, wire tie, nylon tie.

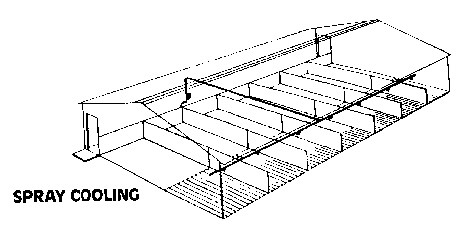

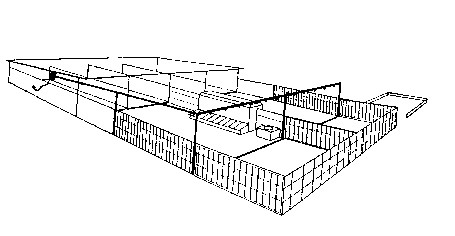

Spray Nozzle Location


Two types of spray nozzles are offered to accommodate the many different sow raising facilities.




1: The G140 series spray nozzles cover a 3 foot radius, and are best place at 4 to 5 foot centers.

2: The G150/151 rotary spray nozzle puts out a cone of water with an 8 foot base. It would be used one or two per pen.

For good results, it is best to balance the runs.
